Micro Positioning Systems
500 Series

Resolution

The winning combination of precision-ground tables, crossed rollers, fine-pitch screw and DC motor-controlled drive produces a perfect resolution of 0.1µm over the long range of 25 mm/1 inch. Accuracy 0.1µm/0.000004 in.

Some Great Features
  • Direct Compact Drive

  • Fine Pitch 0.5 mm Screw

  • Two Way Slip Clutch

  • X, XY and XYZ Mountable

  • Resolution 0.1 µm

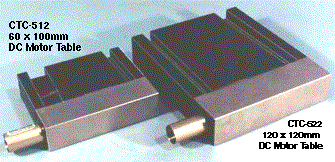

High Resolution Motorized Tables
Less

Table Size

Height

Travel Range

512

60 X 100 mm

26 mm

25mm/1 in.

522

120 X 120 mm

30 mm2

5 mm/1 in.

535-2 X-Y Microscope Stage

The 535-2 motorized two axis microscope stage is the ideal solution for automating demanding microscope operations. Precision lead screws, quality cross roller bearings, and 13mm dia. DC gearmotor make this the stage of choice where ultimate precision is required. Optional linear encoder scales are offered to give 1 µm positional accuracy.

Features
  • Platen size 150mm square

  • Extremely low profile, 30mm height

  • Clear 50mm aperture through full range of XY motion

  • 0.1 µm resolution (with shaft encoders)

  • 1µm resolution accuracy (with Linear encoders)

  • Range of gearheads, speeds, and resolutions

  • Platen drilled and tapped to suit

  • Compatible with CTC-DC Motor Controller

  • Analog joystick control

  • Matching motorized Z-Axis

  • Other travel dimensions and configurations available

  • Vacuum compatible

551 Tilting Goniometer Stage

The tilting stage uses a dove tail slide systems, which is driven by a precision gear. Tilting angle is ±20º of arc from the 0º point; plus or minus 30º.The center of the arc of rotation is 37 mm above the center of the top surface. Two tip tilt stages may be stacked directly to give motion rotating around a common fixed point. Can be motorized.

Specifications

Size                                            60mm x 60mm

Travel                                         ±20 degrees

Straightness, Incremental          10µm

Guiding Method                         Dove Tail

Resolution (*Motorized)              5 arc min (*30 arc sec.)

Repeatability (*Motorized)         5 arc min (*30 arc sec

Load Capacity                           20 lbs

Weight                                       2 lbs.

552 Tilting Goniometer Stage

Specifications

Size

Travel

Guiding Method

Resolution (*motorized)

Repeatability (*motorized)

Load Capacity

Weight

60mm x 120mm

±30 degree

Dove Tail

5 arc min (*30 arc sec.)

5 arc min (*30 arc sec.)

30 lbs.

4 lbs.

570 Precision Worm Gear Tables
Rotating Stages

Features
  • High Precision 360º Rotation with Dual Bearings

  • 570-60, 60mm Dia. Table, Large 30 mm Center Hole

  • 570-100, 100mm Dia. Table. High Stability, low profile construction

Technical Data

Table Diameter

Height

Center Hole

Scale Readings

Runout*

Wobble*

Relative to theoretical rotation axis

570-60

55 mm

30 mm

30mm

1° increments

±1µm

±1 arc. sec.

* Motorized

570-100

92 mm

30 mm

30 mm

1° increments

±1µm

±1 arc. sec.

* Motorized

Technical Data

Table Diameter

Height

Center Hole

Scale Readings

Repeatability*

Load Lb.(max)

Weight Lb.

570-200

200 mm

76 mm

50 mm

down to ± 1 arc sec.

350

18

  • Two precision ball bearings are supporting the structure seated on precision machine and ground mounting surfaces, preloaded to eliminate wobble and runout regardless of mounting position.

  • The drive spindle has a leveraged hinge mount to be easily disengaged from the worm gear to rotate the table top freely to any degree.

  • The DC Motor drives and gearheads can be selected and sized to meet the speed and resolution requirements as the project demands.

582

40 X 40 X 60mm, XYZ, Screwdrive, with limit stop.
