Linear Actuators

New Standard for Sensitive Positioning
Less

The Drive-Master Actuators are the standard for micro-positioning featuring:

  • Precise backlash free Micrometer Head

  • Non-rotating SpindleInterchangeable Tips

  • Optinal Piezoelectric Actuator Attachment

  • Integrated Hard Limit Switches (on 25 & 50mm extensions only)

  • 12 volt DC Servo Motor Drive

  • Computer Control Capable

The Drive-Master’s fine pitch drive spindle is ground to an accuracy better than 3µm per 25mm of travel. With the 16-line dual phase magnetic encoder and standard gear head, computer-controlled resolution is 0.05µm.Customer specified resolutions or slew rates can be achieved with a variety of gearing options. Accessories include ball-tip, radius-tip, flat-tip, and piezoelectric actuator end pieces. See Motor Controllers for computerized and stand alone drivers for these actuators.

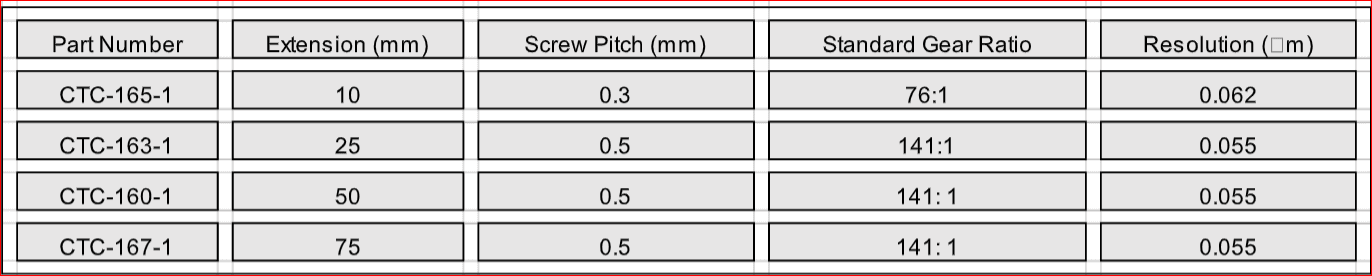

Table 1

End Pieces

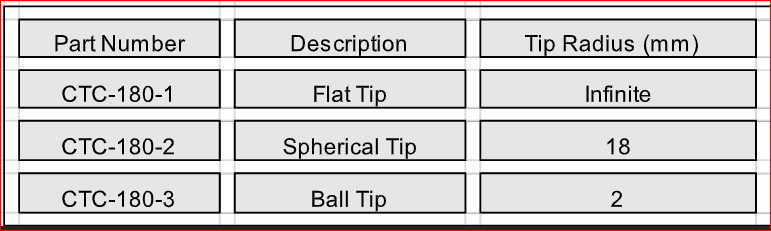

Table 2
Quality 0.1µm resolution
Less

160-1

with DC Motor Drive and Encoder 50mm excursion. Precise Micrometer Head, non-rotating tip for motion-free contact. Weight 9 oz., Length 7 ¼ in (185mm)

163-1

DC Motor Drive and Optical Encoder 25mm excursion. Fine 0.1µm positioning.20 different Gearheads with ratios up to 230,000:1 Weight 9 oz., Length 7 ½ in (190mm)

165-1

165-1 has DC Motor and 10mm excursion. Optional CTC-650-20 Piezo Electric Translator with pinpoint positioning to 0.02 µm.Weight 7 oz., Length 6 in (150mm)

Accessories:

Adaptable tips for Drive-Master Actuator

Ball, Flat, Spherical and Radius-tipPiezo Electric Translator - CTC 650 Series
